1701303 | Phoenix Contact
PCB terminal, 16 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1701303
Unit Price (€ / pc.)
5.8072 € *
Available: 34 pcs.
Available in 5 Days: 680 pcs. - if ordered today

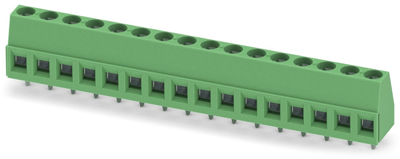

PCB terminal, 1701303, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 16, number of rows: 1, number of positions per row: 16, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- The latching on the side enables various numbers of positions to be combined

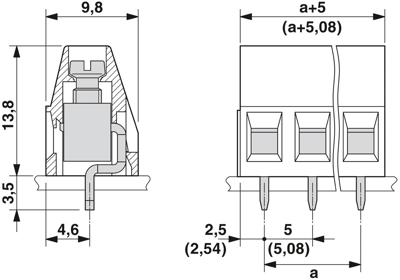

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 81.28 mm | |
| Colour | green | |
| Pin number | 16 pole | |
| AWG cross-section | AWG 26-14 | |
| Rated voltage | 400 V | |
| Assembly | THT | |
| Height | 13.8 mm | |
| Rated current | 17.5 A | |
| Cable cross-section | 0.14-2.5 mm² | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
