1700540 | Phoenix Contact

PCB terminal, 29 pole, pitch 5 mm, AWG 24-12, 24 A, screw connection, green, 1700540

Order No.: 63P4404
EAN: 4046356490726
MPN:
1700540
MKDS 3/29
Series: MKDS

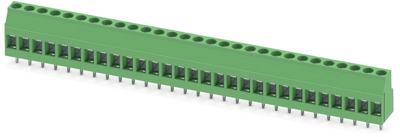

1700540 Phoenix Contact PCB Terminal Blocks Image 1

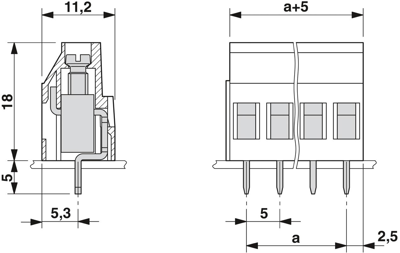

1700540 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
12.8282 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8282 €

PCB terminal, 1700540, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 29, number of rows: 1, number of positions per row: 29, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 5 mm
Connection screw connection
Height 23 mm
Assembly THT
Rated current 24 A
Colour green
Rated voltage 400 V
Cable cross-section 0.2-4.0 mm²
AWG cross-section AWG 24-12
Pin number 29 pole
Width 29 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
