1548131 | Phoenix Contact

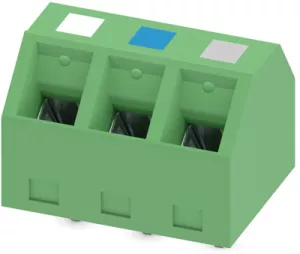

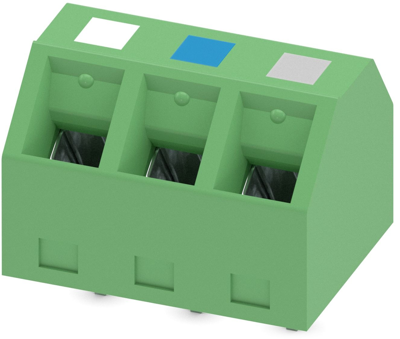

PCB terminal, 3 pole, pitch 5.08 mm, AWG 26-16, 17.5 A, screw connection, green, 1548131
Unit Price (€ / pc.)
1.4042 € *
Standard delivery time from the manufacturer is: 5 Weeks
PCB terminal block, 1548131, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: SMKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Depth | 12 mm | |
| Connection | screw connection | |
| Height | 14.5 mm | |
| Assembly | THT | |
| Rated current | 17.5 A | |
| Colour | green | |
| Rated voltage | 400 V | |
| Cable cross-section | 1.5 mm² | |
| AWG cross-section | AWG 26-16 | |
| Pin number | 3 pole | |
| Width | 16.24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
