1548130 | Phoenix Contact

PCB terminal, 2 pole, pitch 5.08 mm, AWG 26-16, 17.5 A, screw connection, green, 1548130

Order No.: 45F1016
EAN: 4067923023604
MPN:
1548130
SMKDSN 1,5/ 2-5,08 SPE
Series: SMKDS

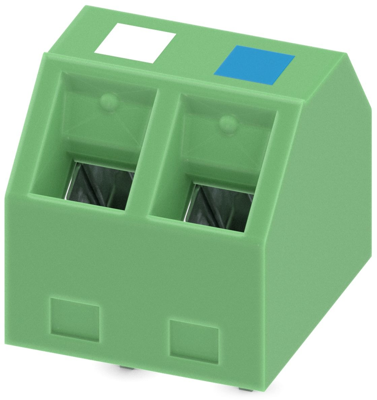

1548130 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
0.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.8568 €

PCB terminal block, 1548130, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SMKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard.

Features

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
  • Angled connection enables multi-row arrangement on the PCB
Technical specifications
Filter Property Value
Connection screw connection
Width 11.16 mm
Colour green
Pin number 2 pole
AWG cross-section AWG 26-16
Rated voltage 400 V
Assembly THT
Height 14.5 mm
Rated current 17.5 A
Cable cross-section 1.5 mm²
Grid 5.08 mm
Depth 12 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
