1548128 | Phoenix Contact
PCB terminal, 2 pole, pitch 5.08 mm, AWG 26-16, 17.5 A, screw connection, green, 1548128
Unit Price (€ / pc.)
0.7973 € *
Available: 186 pcs.
Available in 5 Days: 2,400 pcs. - if ordered today

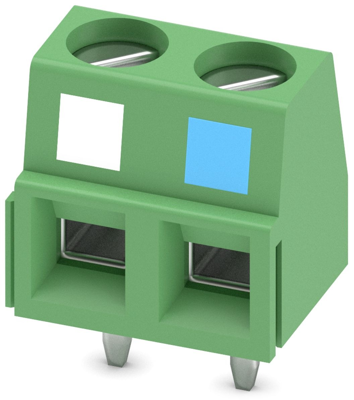

PCB terminal block, 1548128, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 10.16 mm | |
| Colour | green | |
| Pin number | 2 pole | |
| AWG cross-section | AWG 26-16 | |
| Rated voltage | 400 V | |
| Assembly | THT | |
| Height | 13.5 mm | |
| Rated current | 17.5 A | |
| Cable cross-section | 1.5 mm² | |
| Grid | 5.08 mm | |
| Depth | 8.15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
