1477331 | Phoenix Contact

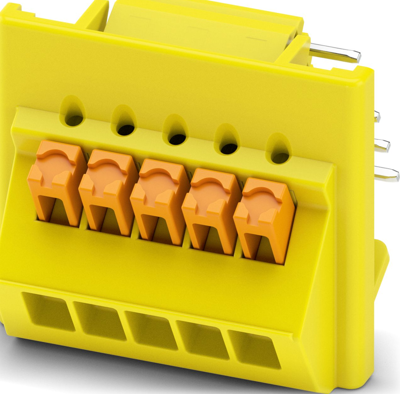

PCB terminal, 5 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in, yellow, 1477331
Unit Price (€ / pc.)
9.5676 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
9.57 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5676 €
10 pcs.
8.9131 €
50 pcs.
8.3538 €
100 pcs.
7.8540 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1477331, Phoenix Contact
Printed circuit board terminal, nominal current: 8 A, rated voltage (III/2): 150 V, nominal cross section: 1.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: ICC..-TP1,5/..R3,5, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: yellow, Pin layout: Linear pinning, Solder pin [P]: 2.8 mm, number of solder pins per potential: 1, Product with pin output on right side.
Features
- Orthogonal alignment of the terminal block with the PCB for optimum accessibility in DIN-rail-mounted devices
- Push-in technology for quick and easy wiring
- Fixed wiring and a reduced number of individual parts
- Choice between different pitches
- Intuitive operation due to color-coded actuating push button
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 21.03 mm | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 8 A | |
| Height | 22.4 mm | |
| Colour | yellow | |
| Assembly | THT | |
| Width | 25 mm | |
| Grid | 3.5 mm | |
| Rated voltage | 150 V | |
| Connection | push-in | |
| Pin number | 5 pole | |
| Cable cross-section | 0.2-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
