1392019 | Phoenix Contact

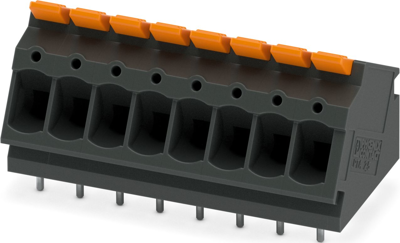

PCB terminal, 8 pole, pitch 5 mm, AWG 24-12, 24 A, push-in, black, 1392019
Unit Price (€ / pc.)
4.3316 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
10 pcs.
4.0103 €
50 pcs.
3.7366 €
100 pcs.
3.4867 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1392019, Phoenix Contact
Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of rows: 1, number of positions per row: 8, product range: LPTA 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Intuitive operation, thanks to a color-coded actuation lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 21.35 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Height | 23.78 mm | |
| Colour | black | |
| Assembly | THT | |
| Width | 41.5 mm | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Connection | push-in | |
| Pin number | 8 pole | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
