1380321 | Phoenix Contact

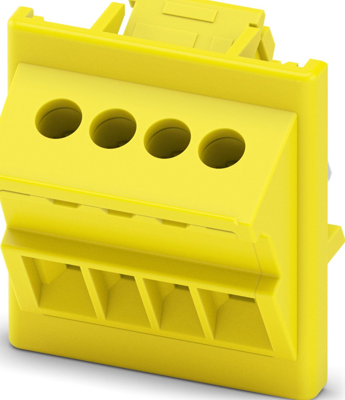

PCB terminal, 4 pole, pitch 3.5 mm, AWG 28-16, 16 A, screw connection, yellow, 1380321
Unit Price (€ / pc.)
6.3189 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
6.32 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3189 €
10 pcs.
5.8905 €
50 pcs.
5.5097 €
100 pcs.
5.1884 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1380321, Phoenix Contact
Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 150 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: ICC..-TS1,5/..L3,5, pitch: 3.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: yellow, Pin layout: Linear pinning, Solder pin [P]: 3.55 mm, number of solder pins per potential: 1, Product with pin output on left side.
Features
- Orthogonal alignment of the terminal block with the PCB for optimum accessibility in DIN-rail-mounted devices
- Internationally recognized and proven screw connection
- Easy handling in just a few steps
- Fixed wiring and a reduced number of individual parts
- Choice between different pitches
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 20 mm | |
| Colour | yellow | |
| Pin number | 4 pole | |
| AWG cross-section | AWG 28-16 | |
| Rated voltage | 150 V | |
| Assembly | THT | |
| Height | 22.4 mm | |
| Rated current | 16 A | |
| Cable cross-section | 0.14-1.5 mm² | |
| Grid | 3.5 mm | |
| Depth | 22.63 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
