1333873 | Phoenix Contact

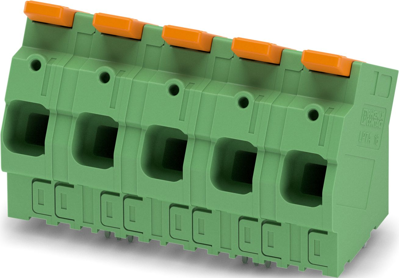

PCB terminal, 5 pole, pitch 15 mm, AWG 18-4, 76 A, push-in, green, 1333873
Unit Price (€ / pc.)
18.4331 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
18.43 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4331 €
10 pcs.
17.1836 €
25 pcs.
16.0888 €
50 pcs.
15.1249 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1333873, Phoenix Contact
Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, product range: LPTA 16/, pitch: 15 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.6 mm, number of solder pins per potential: 3.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Intuitive operation, thanks to a color-coded actuation lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 15 mm | |
| Pin number | 5 pole | |
| Height | 45.8 mm | |
| Colour | green | |
| Rated current | 76 A | |
| Cable cross-section | 0.75-16 mm² | |
| Connection | push-in | |
| Assembly | THT | |
| AWG cross-section | AWG 18-4 | |
| Depth | 37.4 mm | |
| Rated voltage | 1000 V | |
| Width | 71.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
