1333816 | Phoenix Contact

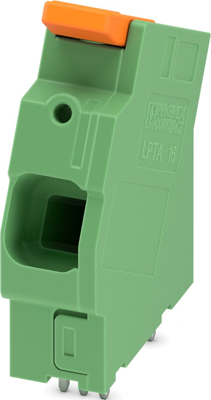

PCB terminal, 1 pole, pitch 10 mm, AWG 18-4, 76 A, push-in, green, 1333816
Unit Price (€ / pc.)
3.6890 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6890 €
10 pcs.
3.4153 €
50 pcs.
3.1773 €
100 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1333816, Phoenix Contact
Printed circuit board terminal, nominal current: 76 A, nominal cross section: 16 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: LPTA 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Intuitive operation, thanks to a color-coded actuation lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Pin number | 1 pole | |
| Height | 45.8 mm | |
| Colour | green | |
| Rated current | 76 A | |
| Cable cross-section | 0.75-16 mm² | |
| Connection | push-in | |
| Assembly | THT | |
| AWG cross-section | AWG 18-4 | |
| Depth | 37.4 mm | |
| Rated voltage | 1000 V | |
| Width | 11.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
