1317573 | Phoenix Contact

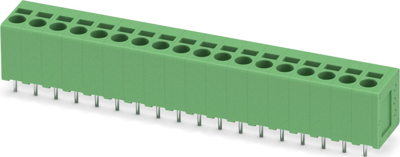

PCB terminal, 18 pole, pitch 5 mm, AWG 24-12, 24 A, push-in, green, 1317573
Unit Price (€ / pc.)
7.3780 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3780 €
10 pcs.
6.8782 €
50 pcs.
6.4379 €
100 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1317573, Phoenix Contact
Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of rows: 1, number of positions per row: 18, product range: SPT 2,5/..-V, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 13.5 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Height | 16.9 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 91.4 mm | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Connection | push-in | |
| Pin number | 18 pole | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
