1274007 | Phoenix Contact

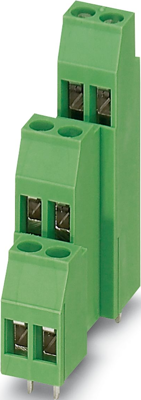

PCB terminal, 8 pole, pitch 5.08 mm, AWG 24-12, 17.5 A, screw connection, green, 1274007
Unit Price (€ / pc.)
18.5640 € *
Available in 10 days: 100 pcs. - if ordered today
Total Price:
18.56 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5640 €
10 pcs.
17.3026 €
25 pcs.
16.2078 €
50 pcs.
15.2320 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1274007, Phoenix Contact
Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of rows: 3, number of positions per row: 8, product range: MK3DS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 1.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Rated voltage | 400 V | |
| AWG cross-section | AWG 24-12 | |
| Depth | 33.6 mm | |
| Connection | screw connection | |
| Width | 17.78 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 17.5 A | |
| Assembly | THT | |
| Height | 49.8 mm | |
| Colour | green | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
