1190372 | Phoenix Contact

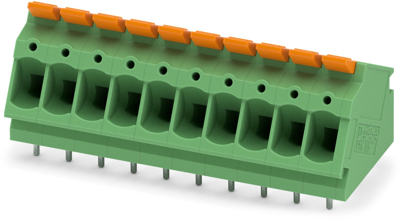

PCB terminal, 10 pole, pitch 5 mm, AWG 24-12, 24 A, push-in, green, 1190372
Unit Price (€ / pc.)
5.117 € *
Standard delivery time from the manufacturer is: 2 Weeks
PCB terminal block, 1190372, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: LPTA 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Intuitive operation, thanks to a color-coded actuation lever
Technical specifications
| Colour | green | |
| Depth | 21.35 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Grid | 5 mm | |
| Width | 51.5 mm | |
| Height | 23.78 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Pin number | 10 pole | |
| Connection | push-in | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
