1071179 | Phoenix Contact

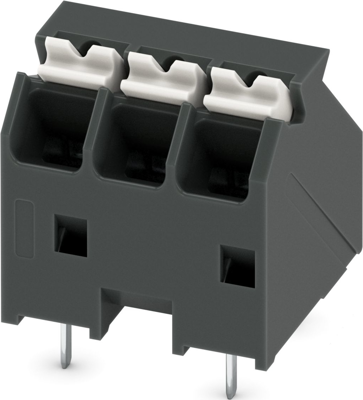

PCB terminal, 3 pole, pitch 3.81 mm, AWG 24-16, 17.5 A, push-in, black, 1071179
Unit Price (€ / pc.)
2.1182 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
10 pcs.
1.9516 €
50 pcs.
1.8207 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1071179, Phoenix Contact
Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of rows: 1, number of positions per row: 3, product range: SPTA 1,5/..-THR, pitch: 3.81 mm, connection method: Push-in spring connection, mounting: THR soldering / wave soldering, conductor/PCB connection direction: 45 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive operation due to color-coded actuating push button
- Angled connection enables multi-row arrangement on the PCB
- Designed for integration into the SMT soldering process
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Rated voltage | 160 V | |
| AWG cross-section | AWG 24-16 | |
| Depth | 11.6 mm | |
| Connection | push-in | |
| Width | 12.22 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated current | 17.5 A | |
| Assembly | THT/THR | |
| Height | 14.5 mm | |
| Colour | black | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
