1034460 | Phoenix Contact

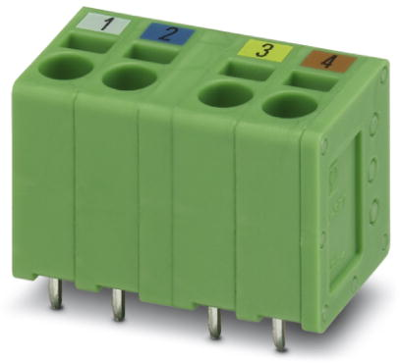

PCB terminal, 4 pole, pitch 5 mm, AWG 24-14, 23 A, spring-clamp connection, green, 1034460
Unit Price (€ / pc.)
4.1174 € *
Standard delivery time from the manufacturer is: 8 Weeks
PCB terminal, 1034460, Phoenix Contact
PCB terminal block, nominal current: 23 A, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Operation and conductor connection from one direction enable integration into front of device
- Time saving push-in connection, tools not required
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Rated voltage | 176 V | |
| Connection | spring-clamp connection | |
| Colour | green | |
| Grid | 5 mm | |
| AWG cross-section | AWG 24-14 | |
| Cable cross-section | 0.2-4.0 mm² | |
| Assembly | THT | |
| Height | 16.9 mm | |
| Width | 23.9 mm | |
| Rated current | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
