1017523 | Phoenix Contact
PCB terminal, 4 pole, pitch 6.35 mm, AWG 24-10, 41 A, spring-clamp connection, green, 1017523
Unit Price (€ / pc.)
3.8318 € *
Available: 45 pcs.
Available in 5 Days: 84 pcs. - if ordered today

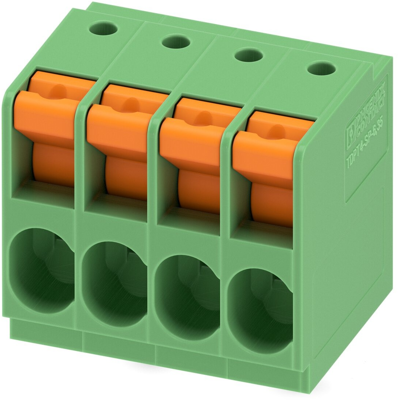

PCB terminal, 1017523, Phoenix Contact
PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 6.35 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: Zigzag pinning W, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Easy to adapt, thanks to their identical size and the same pinning for push-in spring connections as for screw connections
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Pin number | 4 pole | |
| Grid | 6.35 mm | |
| Rated current | 41 A | |
| Colour | green | |
| Width | 26.2 mm | |
| AWG cross-section | AWG 24-10 | |
| Height | 26.9 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Connection | spring-clamp connection | |
| Rated voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
