1017510 | Phoenix Contact

PCB terminal, 9 pole, pitch 5.08 mm, AWG 24-12, 32 A, spring-clamp connection, green, 1017510

Order No.: 64P0047
EAN: 4055626501444
MPN:
1017510
TDPT 2,5/ 9-SP-5,08
Series: TDPT
1017510 Phoenix Contact PCB Terminal Blocks

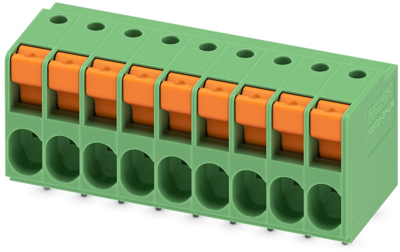

Image may differ
Unit Price (€ / pc.)
4.1174 € *
Available in 5 Days: 40 pcs. - if ordered today
Total Price:
4.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.1174 €

PCB terminal, 1017510, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.

Features

  • Easy to adapt, thanks to their identical size and the same pinning for push-in spring connections as for screw connections
  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
Technical specifications
Filter Property Value
Rated current 32 A
Rated voltage 400 V
Height 22.5 mm
Cable cross-section 0.2-4.0 mm²
Pin number 9 pole
Grid 5.08 mm
Connection spring-clamp connection
Assembly THT
AWG cross-section AWG 24-12
Colour green
Width 46.52 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
