1017509 | Phoenix Contact

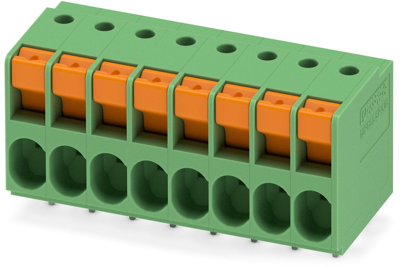

PCB terminal, 8 pole, pitch 5.08 mm, AWG 24-12, 32 A, spring-clamp connection, green, 1017509
Unit Price (€ / pc.)
5.1289 € *
Available in 10 days: 498 pcs. - if ordered today
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
10 pcs.
4.7124 €
50 pcs.
4.2959 €
100 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1017509, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Easy to adapt, thanks to their identical size and the same pinning for push-in spring connections as for screw connections
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Rated voltage | 400 V | |
| Connection | spring-clamp connection | |
| Colour | green | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 24-12 | |
| Cable cross-section | 0.2-4.0 mm² | |
| Assembly | THT | |
| Height | 22.5 mm | |
| Width | 41.44 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
