1017498 | Phoenix Contact

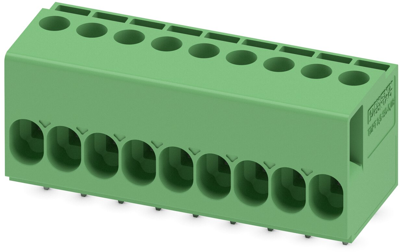

PCB terminal, 9 pole, pitch 5.08 mm, AWG 24-12, 24 A, screw connection, green, 1017498
Unit Price (€ / pc.)
4.1174 € *
Standard delivery time from the manufacturer is: On Request
PCB terminal, 1017498, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Easy to adapt, thanks to their identical size and the same pinning for push-in spring connections as for screw connections
- Low temperature rise, thanks to maximum contact force
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Height | 22.5 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 46.52 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Connection | screw connection | |
| Pin number | 9 pole | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
