1017493 | Phoenix Contact

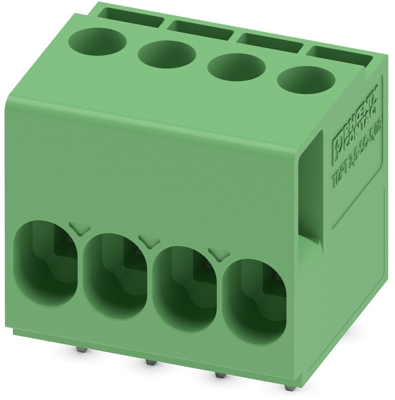

PCB terminal, 4 pole, pitch 5.08 mm, AWG 24-12, 24 A, screw connection, green, 1017493
Unit Price (€ / pc.)
2.5585 € *
Available in 10 days: 39 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
10 pcs.
2.3562 €
50 pcs.
2.1420 €
100 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1017493, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Easy to adapt, thanks to their identical size and the same pinning for push-in spring connections as for screw connections
- Low temperature rise, thanks to maximum contact force
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Rated voltage | 400 V | |
| Connection | screw connection | |
| Colour | green | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 24-12 | |
| Cable cross-section | 0.2-4.0 mm² | |
| Assembly | THT | |
| Height | 22.5 mm | |
| Width | 21.12 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
