2915229 | Phoenix Contact

PCB base strip, 3 pole, pitch 5 mm, angled, black, 2915229

Order No.: 64P2713
EAN: 4063151330804
MPN:
2915229
Series: MSTBO 2,5
2915229 Phoenix Contact PCB Connection Systems

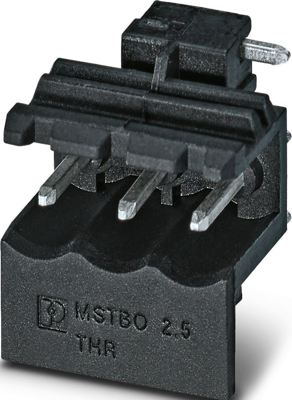

Image may differ
Unit Price (€ / pc.)
3.9627 € *
Available in 10 days: 1,190 pcs. - if ordered today
Total Price:
3.96 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9627 €
10 pcs.
3.6533 €
50 pcs.
3.3558 €
100 pcs.
3.0226 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB header, 2915229, Phoenix Contact

PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 16 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of rows: 1, Number of positions: 3, Product range: MSTBO 2,5/..-G1R-THR, Pitch: 5 mm, Mounting: THR soldering, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Product with pin output on right side.

Technical specifications
Type of locking No
Grid 5 mm
Version pin header
Rated current 16 A
Contact type pin
Orientation angled
contact surface tin-plated
Colour black
Rated voltage 320 V
Connection solder connection
Number of rows 1
Pin number 3 pole
Logistics
Customs tariff number 85366930
Country of origin PL
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
