2697194 | Phoenix Contact

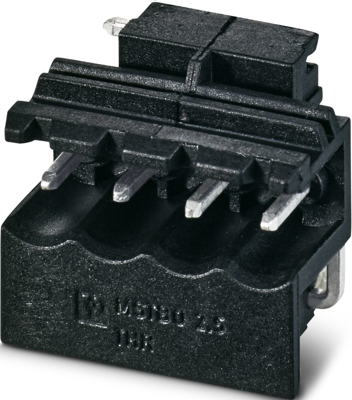

PCB base strip, 4 pole, pitch 5 mm, angled, black, 2697194
Unit Price (€ / pc.)
5.6882 € *
Available: 50 pcs.
Available in 10 days: 6,700 pcs.
Leadtime: 2 Weeks **
Total Price:
5.69 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6882 €
10 pcs.
5.2360 €
50 pcs.
4.8195 €
100 pcs.
4.3316 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB header, 2697194, Phoenix Contact
PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 16 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of rows: 1, Number of positions: 4, Product range: MSTBO 2,5/..-G1L-THR, Pitch: 5 mm, Mounting: THR soldering, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Product with pin output on left side.
Technical specifications
| Contact type | pin | |
| Orientation | angled | |
| Grid | 5 mm | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | black | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection | solder connection | |
| Pin number | 4 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
