2202610 | Phoenix Contact

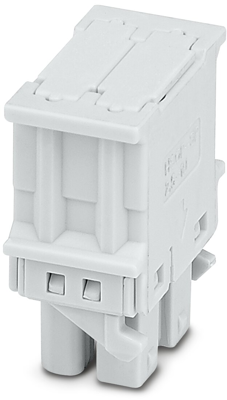

Socket header, pitch 5 mm, straight, light gray, 2202610
Unit Price (€ / pc.)
3.8318 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.5343 €
50 pcs.
3.2130 €
100 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale
Filler plug, 2202610, Phoenix Contact
PCB connector, nominal cross section: 2.5 mm², color: light gray, nominal current: 8 A, rated voltage (III/2): 300 V, contact surface: Tin, Number of potentials: 0, Number of positions per row: 0, number of connections: 0, product range: HSCP-SP 2,5-.., pitch: 5 mm, plug-in system: HSC 2,5, Locking: Snap-in locking, type of packaging: packed in cardboard, Filler plugs
Features
- Filler plugs for fully closed device fronts
- Plastic in accordance with UL94 V0: for more rigorous flammability requirements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Version | socket header | |
| contact surface | tin-plated | |
| Colour | light gray | |
| Number of rows | 2 | |
| Rated voltage | 300 V | |
| Type of locking | Yes | |
| Orientation | straight | |
| Contact type | socket | |
| Rated current | 8 A | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
