2200252 | Phoenix Contact

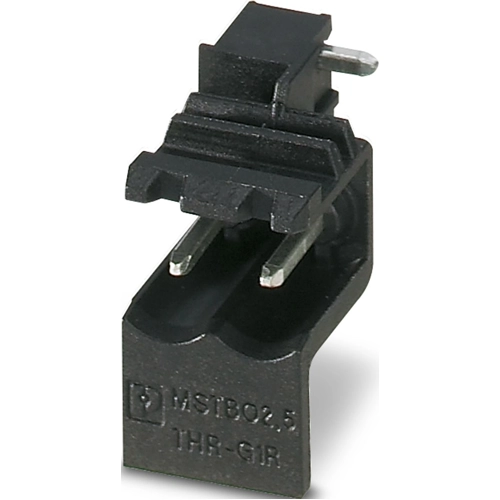

PCB base strip, 2 pole, pitch 5 mm, angled, black, 2200252

Order No.: 64P2645
EAN: 4063151330804
MPN:
2200252
Series: MSTBO 2,5
2200252 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
3.3201 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.8084 €
100 pcs.
2.5228 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB header, 2200252, Phoenix Contact

PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 16 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of potentials: 2, Number of rows: 1, Number of positions: 2, Number of connections: 2, Product range: MSTBO 2,5/..-G1R-THR, Pitch: 5 mm, Mounting: THR soldering, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Type of packaging: 32 mm wide tape, Product with pin output on left side.

Technical specifications
contact surface tin-plated
Orientation angled
Number of rows 1
Type of locking No
Colour black
Connection solder connection
Rated voltage 320 V
Contact type pin
Grid 5 mm
Rated current 16 A
Pin number 2 pole
Version pin header
Logistics
Customs tariff number 85366930
Country of origin PL
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
