2200251 | Phoenix Contact

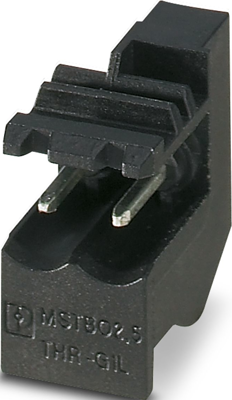

PCB base strip, 2 pole, pitch 5 mm, angled, black, 2200251
Unit Price (€ / pc.)
3.3201 € *
Available in 5 Days: 28,980 pcs. - if ordered today
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.8084 €
100 pcs.
2.5228 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB header, 2200251, Phoenix Contact
PCB header, Nominal cross section: 2.5 mm², Color: black, Nominal current: 16 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of potentials: 2, Number of rows: 1, Number of positions: 2, Number of connections: 2, Product range: MSTBO 2,5/..-G1L-THR, Pitch: 5 mm, Mounting: THR soldering, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Type of packaging: 32 mm wide tape, Product with pin output on left side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Type of locking | No | |
| Colour | black | |
| Grid | 5 mm | |
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Number of rows | 1 | |
| Orientation | angled | |
| Contact type | pin | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
