1996317 | Phoenix Contact

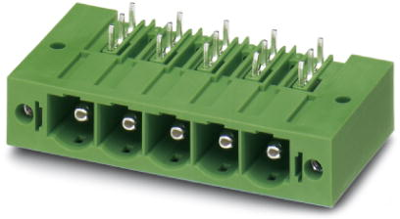

Pin header, 2 pole, pitch 10.16 mm, angled, green, 1996317
Unit Price (€ / pc.)
4.3316 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
10 pcs.
3.9865 €
50 pcs.
3.6295 €
100 pcs.
3.2725 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10.16 mm | |
| contact surface | silver-plated | |
| Connection | solder connection | |
| Orientation | angled | |
| Contact type | pin | |
| Version | pin header | |
| Rated current | 76 A | |
| Colour | green | |
| Rated voltage | 1 kV | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Connection plating | silver-plated | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
