1984044 | Phoenix Contact

Socket header, 5 pole, pitch 3.5 mm, straight, green, 1984044

Order No.: 51F7756
EAN: 4017918946043
MPN:
1984044
PT 1,5/ 5-PVH-3,5
Series: PT

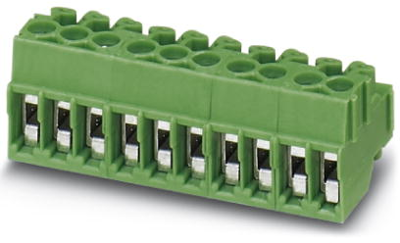

1984044 Phoenix Contact PCB Connection Systems Image 1
1984044 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available: 40 pcs.
Available in 10 days: 29,898 pcs. - if ordered today
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5109 €
50 pcs.
2.2729 €
100 pcs.
2.0587 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.

Grid: 3.5 mm. Insulator: PA. Rated surge voltage: 2.5 kV. Rated/load current: 8.0 A. Inflammability class: UL 94 V-0. Certifications: UL, CUL.

Multipole connectors, type PT 1,5/..-PVH-3,5.

Screw connections; Terminating capacity solid/flexible: 0.2 to 1.5 mm² (AWG 26 to 16). Stripping length: 5.0 mm. Thread: M 2, tightening torque: 0.25 N/m. Rated voltage (overvoltage category/degree of soiling): 160 V (III/3), 200 V (III/2), 400 V (II/2).

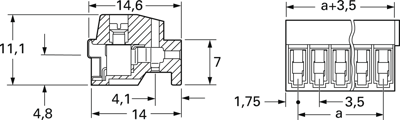

Technical attributes (type, number of poles, dimension a): PT 1,5/5-PVH-3,5, 5-pole, 14 mm

Technical specifications
Filter Property Value
Contact type socket
Pin number 5 pole
Grid 3.5 mm
Colour green
Version socket header
Connection screw connection
Connection plating tin-plated
Rated voltage 200 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
