1969593 | Phoenix Contact

Socket header, 8 pole, pitch 10.16 mm, angled, green, 1969593

Order No.: 63P1446
EAN: 4017918943837
MPN:
1969593
IPC 16/ 8-G-10,16
Series: IPC

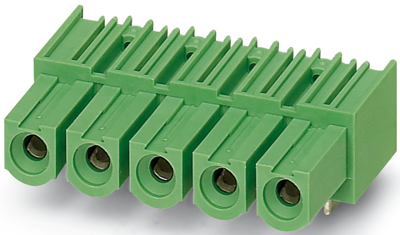

1969593 Phoenix Contact PCB Connection Systems Image 1

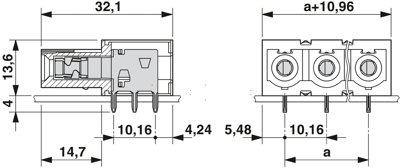

1969593 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
15.6485 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
782.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
15.6485 €

Feed-through header, 1969593, Phoenix Contact

PCB header, nominal cross section: 16 mm², color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Silver, type of contact: Female connector, Number of potentials: 8, Number of rows: 1, Number of positions per row: 8, number of connections: 8, product range: IPC 16/..-G, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear three-way pinning, solder pin [P]: 4 mm, plug-in system: POWER COMBICON 16, Locking: without, type of packaging: packed in cardboard

Features

  • Well-known mounting principle allows worldwide use
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
  • Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections
  • Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Technical specifications
Filter Property Value
Type of locking No
Version socket header
Connection solder connection
Number of rows 1
Contact type socket
Additional parts equipped
Rated voltage 1 kV
Connection plating silver-plated
contact surface silver-plated
Pin number 8 pole
Grid 10.16 mm
Colour green
Rated current 76 A
Orientation angled
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
