1952322 | Phoenix Contact

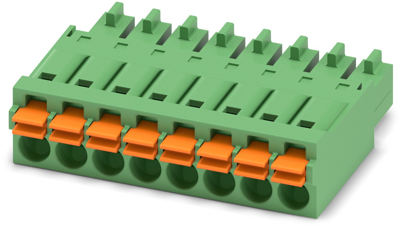

Socket header, 8 pole, pitch 3.5 mm, straight, green, 1952322
Unit Price (€ / pc.)
6.1761 € *
Available: 47 pcs.
Available in 10 days: 5,973 pcs. - if ordered today
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
10 pcs.
5.6763 €
50 pcs.
5.1646 €
100 pcs.
4.6529 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 160 V | |
| Orientation | straight | |
| Rated current | 8 A | |
| Type of locking | No | |
| Colour | green | |
| Pin number | 8 pole | |
| Connection | push-in spring connection | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | socket header | |
| Additional parts | equipped | |
| Grid | 3.5 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
