1947175 | Phoenix Contact

Socket header, 14 pole, pitch 5 mm, straight, green, 1947175

Order No.: 51F7424
EAN: 4017918892531
MPN:
1947175
FCK 2,5/14-ST-RF
Series: FCK

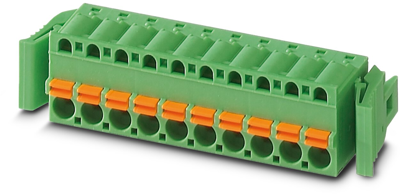

1947175 Phoenix Contact PCB Connection Systems Image 1
1947175 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
8.0682 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
403.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
8.0682 €

Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FKC2,5.

For conductor cross-sections up to 2.5 mm². Rugged insulated housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 630 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.

5.0 mm grid, type FKC2,5.

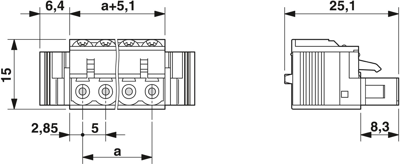

Technical attributes (type, number of poles, dimension a): FKC2,5/14-ST-RF, 14-pole, 65 mm

Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 14 pole
Version socket header
Additional parts equipped
Orientation straight
Connection push-in spring connection
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
