1947117 | Phoenix Contact

Socket header, 8 pole, pitch 5 mm, straight, green, 1947117

Order No.: 51F7412
EAN: 4017918891732
MPN:
1947117
FCK 2,5/8-ST-RF
Series: FCK

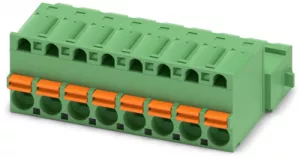

1947117 Phoenix Contact PCB Connection Systems Image 1
1947117 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.3185 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.7354 €
50 pcs.
6.1285 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FKC2,5.

For conductor cross-sections up to 2.5 mm². Rugged insulated housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 630 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.

5.0 mm grid, type FKC2,5.

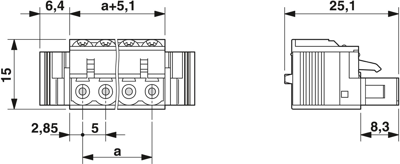

Technical attributes (type, number of poles, dimension a): FKC2,5/8-ST-RF, 8-pole, 35 mm

Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 8 pole
Version socket header
Additional parts equipped
Orientation straight
Connection push-in spring connection
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
