1945232 | Phoenix Contact

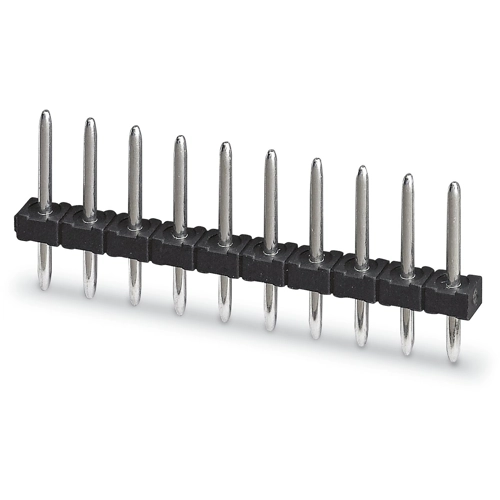

Pin header, 16 pole, pitch 3.5 mm, straight, black, 1945232
Unit Price (€ / pc.)
2.3800 € *
Available: 26 pcs.
Available in 10 days: 4,950 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1896 €
50 pcs.
1.9873 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.
Grid: 3.5 mm. Insulator: PA. Rated surge voltage: 2.5 kV. Rated/load current: 8.0 A. Inflammability class: UL 94 V-0. Certifications: UL, CUL.
Pin headers, type PST 1,0/..-3,5.
With 1.0 mm solder pins (for 1.2 mm bore); Rated voltage (overvoltage category/degree of soiling): 160 V (III/ 3), 250 V (III/ 2), 250 V (II/ 2).

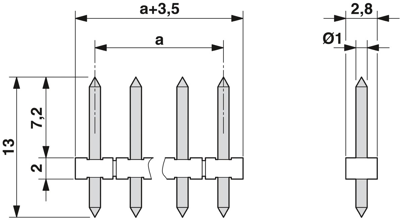

Technical attributes (type, number of poles, dimension a): PST 1.0/16-3.5, 16-pole, 52.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Orientation | straight | |
| Contact type | pin | |
| Version | pin header | |
| Rated current | 8 A | |
| Colour | black | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 16 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
