1945180 | Phoenix Contact

Pin header, 11 pole, pitch 3.5 mm, straight, black, 1945180

Order No.: 51F7718
EAN: 4017918883355
MPN:
1945180
PST 1,0/11-3,5
Series: PST
1945180 Phoenix Contact PCB Connection Systems Image 1
1945180 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Available: 100 pcs.
Available in 10 days: 31 pcs. - if ordered today
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
10 pcs.
1.4994 €
50 pcs.
1.3566 €
100 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.

Grid: 3.5 mm. Insulator: PA. Rated surge voltage: 2.5 kV. Rated/load current: 8.0 A. Inflammability class: UL 94 V-0. Certifications: UL, CUL.

Pin headers, type PST 1,0/..-3,5.

With 1.0 mm solder pins (for 1.2 mm bore); Rated voltage (overvoltage category/degree of soiling): 160 V (III/ 3), 250 V (III/ 2), 250 V (II/ 2).

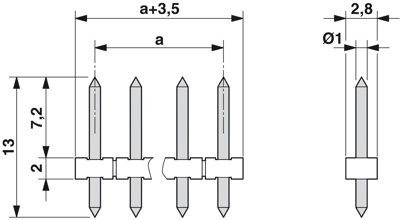

Technical attributes (type, number of poles, dimension a): PST 1.0/11-3.5, 11-pole, 35 mm

Technical specifications
Filter Property Value
Rated current 8 A
Rated voltage 250 V
Version pin header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 11 pole
Grid 3.5 mm
Type of locking No
Contact type pin
Colour black
Connection solder connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
