1945148 | Phoenix Contact

Pin header, 7 pole, pitch 3.5 mm, straight, black, 1945148

Order No.: 51F7710
EAN: 4017918883317
MPN:
1945148
PST 1,0/ 7-3,5
Series: PST
1945148 Phoenix Contact PCB Connection Systems Image 1
1945148 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available in 10 days: 2,474 pcs. - if ordered today
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9520 €
50 pcs.
0.8687 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.

Grid: 3.5 mm. Insulator: PA. Rated surge voltage: 2.5 kV. Rated/load current: 8.0 A. Inflammability class: UL 94 V-0. Certifications: UL, CUL.

Pin headers, type PST 1,0/..-3,5.

With 1.0 mm solder pins (for 1.2 mm bore); Rated voltage (overvoltage category/degree of soiling): 160 V (III/ 3), 250 V (III/ 2), 250 V (II/ 2).

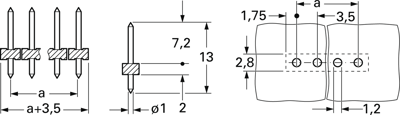

Technical attributes (type, number of poles, dimension a): PST 1.0/7-3.5, 7-pole, 21 mm

Technical specifications
Filter Property Value
Contact type pin
Pin number 7 pole
Grid 3.5 mm
Colour black
Version pin header
Connection solder connection
Rated voltage 250 V
Rated current 8 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking No
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
