1944877 | Phoenix Contact

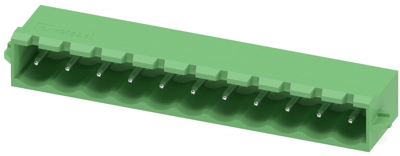

Pin header, 11 pole, pitch 5 mm, angled, green, 1944877
Unit Price (€ / pc.)
3.4272 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1535 €
50 pcs.
2.8679 €
100 pcs.
2.5823 €
*incl. VAT plus shipping costs
**Subject to prior sale
Base housings with click-and-lock flange, type MSTBA2,5.
Horizontal conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.
5.0 mm grid, type MSTBA2,5.
Technical attributes (type, number of poles, dimension a): MSTBA2,5/11-G-RN, 11-pole, 50 mm
Technical specifications
| Version | pin header | |
| Colour | green | |
| Number of rows | 1 | |
| Rated current | 12 A | |
| Type of locking | Yes | |
| Contact type | pin | |
| Connection | solder connection | |
| Orientation | angled | |
| Pin number | 11 pole | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Grid | 5 mm | |
| contact surface | tin-plated |
Download
Logistics
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
