1944699 | Phoenix Contact

Pin header, 12 pole, pitch 5 mm, straight, green, 1944699

Order No.: 51F7550
EAN: 4017918890964
MPN:
1944699
MSTBVA 2,5/12-G-RN
Series: MSTBVA

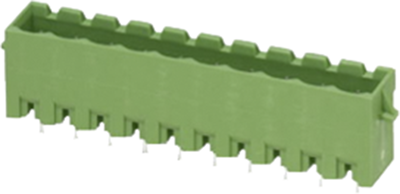

1944699 Phoenix Contact PCB Connection Systems Image 1
1944699 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7366 € *
Available: 50 pcs.
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.4391 €
50 pcs.
3.1297 €
100 pcs.
2.8203 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBVA2,5.

Vertical conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, C

5.0 mm grid, type MSTBVA2,5.

Type: MSTBVA2,5/12-G-RN, 12-pole, 55 mm

Technical specifications
Filter Property Value
Grid 5 mm
contact surface tin-plated
Connection PCB connection
Orientation straight
Contact type pin
Version pin header
Rated current 12 A
Colour green
Rated voltage 320 V
Additional parts equipped
Number of rows 1
Type of locking Yes
Pin number 12 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
