1944615 | Phoenix Contact

Pin header, 4 pole, pitch 5 mm, straight, green, 1944615

Order No.: 51F7534
EAN: 4017918890896
MPN:
1944615
MSTBVA 2,5/4-G-RN
Series: MSTBVA

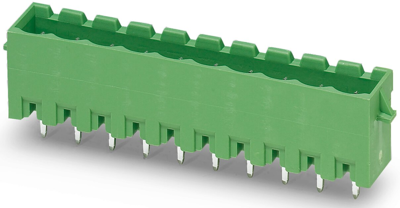

1944615 Phoenix Contact PCB Connection Systems Image 1
1944615 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Available in 10 days: 238 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.1662 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBVA2,5.

Vertical conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, C

5.0 mm grid, type MSTBVA2,5.

Type: MSTBVA2,5/4-G-RN, 4-pole, 15 mm

Technical specifications
Filter Property Value
Contact type pin
Pin number 4 pole
Grid 5 mm
Colour green
Version pin header
Connection PCB connection
Rated voltage 320 V
Rated current 12 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
