1936089 | Phoenix Contact

Pin header, 9 pole, pitch 5.08 mm, straight, green, 1936089

Order No.: 51F7574
EAN: 4017918822071
MPN:
1936089
MSTBVA 2,5/9-G-5,08-RN
Series: MSTBVA

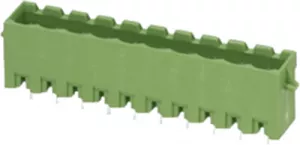

1936089 Phoenix Contact PCB Connection Systems Image 1

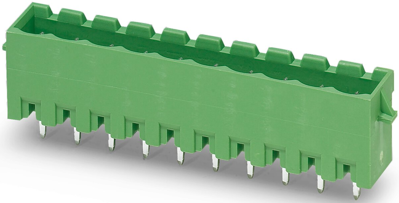

1936089 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.8084 € *
Available in 10 days: 450 pcs. - if ordered today
Total Price:
2.81 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8084 €
10 pcs.
2.5823 €
50 pcs.
2.3562 €
100 pcs.
2.1182 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBVA2,5.

Vertical conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, C

5.08 mm grid, type MSTBVA2,5.

Type: MSTBVA2,5/9-G-5.08-RN, 9-pole, 40.64 mm

Technical specifications
Filter Property Value
Rated current 12 A
Rated voltage 320 V
Version pin header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 9 pole
Grid 5.08 mm
Type of locking Yes
Contact type pin
Colour green
Connection solder connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
