1936034 | Phoenix Contact

Pin header, 4 pole, pitch 5.08 mm, straight, green, 1936034

Order No.: 51F7564
EAN: 4017918822026
MPN:
1936034
MSTBVA 2,5/4-G-5,08-RN
Series: MSTBVA

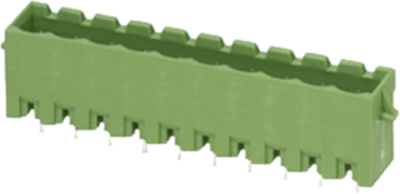

1936034 Phoenix Contact PCB Connection Systems Image 1
1936034 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Available: 2 pcs.
Available in 10 days: 945 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.1662 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBVA2,5.

Vertical conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, C

5.08 mm grid, type MSTBVA2,5.

Type: MSTBVA2,5/4-G-5.08-RN, 4-pole, 15.24 mm

Technical specifications
Filter Property Value
Rated current 12 A
Rated voltage 320 V
Version pin header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 4 pole
Grid 5.08 mm
Type of locking Yes
Contact type pin
Colour green
Connection solder connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
