1936018 | Phoenix Contact

Pin header, 2 pole, pitch 5.08 mm, straight, green, 1936018

Order No.: 51F7560
EAN: 4017918822002
MPN:
1936018
MSTBVA 2,5/2-G-5,08-RN
Series: MSTBVA

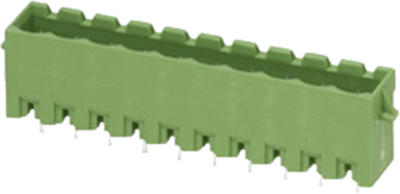

1936018 Phoenix Contact PCB Connection Systems Image 1
1936018 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.6188 € *
Available: 47 pcs.
Available in 10 days: 7,150 pcs. - if ordered today
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5712 €
50 pcs.
0.5236 €
100 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBVA2,5.

Vertical conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, C

5.08 mm grid, type MSTBVA2,5.

Type: MSTBVA2,5/2-G-5.08-RN, 2-pole, 5.08 mm

Technical specifications
Filter Property Value
Rated voltage 320 V
Type of locking Yes
Connection solder connection
Pin number 2 pole
contact surface tin-plated
Number of rows 1
Additional parts equipped
Version pin header
Orientation straight
Grid 5.08 mm
Rated current 12 A
Contact type pin
Colour green
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
