1934984 | Phoenix Contact
Socket header, 14 pole, pitch 5 mm, straight, green, 1934984
Unit Price (€ / pc.)
6.6759 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.68 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6759 €
10 pcs.
6.1404 €
50 pcs.
5.5811 €
100 pcs.
5.0218 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.
Grid: 5.0 mm. Insulator: PA. Rated surge voltage: 4.0 kV. Inflammability class: UL 94 V-0. Certifications: UL, CUL.
Multipole connectors, type PT 1,5/..-PVH-5,0.
Screw connections; Terminating capacity solid/flexible: 0.2 to 2.5 mm² (AWG 26 to 14). Stripping length: 5.0 mm. Thread: M 2.6. Tightening torque: 0.4 N/m. Rated voltage (overvoltage category/degree of soiling): 250 V (III/3), 320 V (III/2), 630 V (II/2), rated current (at conductor cross-section 1.5 mm²): 12 A, load current (with conductor cross-section 2.5 mm²): max. 12 A.

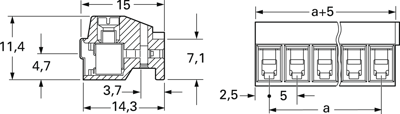

Technical attributes (type, number of poles, dimension a): PT 1,5/14-PVH-5,0, 14-pole, 65 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Connection | screw connection | |
| Orientation | straight | |
| Contact type | socket | |
| Version | socket header | |
| Rated current | 12 A | |
| Colour | green | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Type of locking | No | |
| Connection plating | tin-plated | |
| Pin number | 14 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
