1934942 | Phoenix Contact

Socket header, 10 pole, pitch 5 mm, straight, green, 1934942

Order No.: 51F7866
EAN: 4017918916718
MPN:
1934942
PT 1,5/10-PVH-5,0
Series: PT

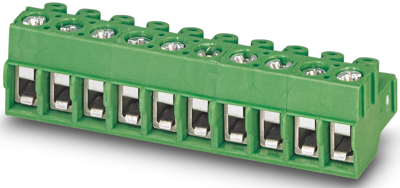

1934942 Phoenix Contact PCB Connection Systems Image 1

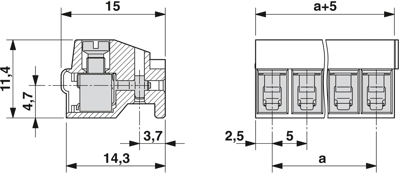

1934942 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.6533 € *
Available in 5 Days: 200 pcs. - if ordered today
Total Price:
3.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6533 €

Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.

Grid: 5.0 mm. Insulator: PA. Rated surge voltage: 4.0 kV. Inflammability class: UL 94 V-0. Certifications: UL, CUL.

Multipole connectors, type PT 1,5/..-PVH-5,0.

Screw connections; Terminating capacity solid/flexible: 0.2 to 2.5 mm² (AWG 26 to 14). Stripping length: 5.0 mm. Thread: M 2.6. Tightening torque: 0.4 N/m. Rated voltage (overvoltage category/degree of soiling): 250 V (III/3), 320 V (III/2), 630 V (II/2), rated current (at conductor cross-section 1.5 mm²): 12 A, load current (with conductor cross-section 2.5 mm²): max. 12 A.

Technical attributes (type, number of poles, dimension a): PT 1,5/10-PVH-5,0, 10-pole, 45 mm

Technical specifications
Filter Property Value
Connection screw connection
Grid 5 mm
Connection plating tin-plated
Rated current 12 A
Number of rows 1
contact surface tin-plated
Version socket header
Rated voltage 320 V
Type of locking No
Additional parts equipped
Pin number 10 pole
Orientation straight
Contact type socket
Colour green
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
