1933257 | Phoenix Contact

Pin header, 9 pole, pitch 5 mm, straight, black, 1933257

Order No.: 51F7814
EAN: 4017918918743
MPN:
1933257
PST 1,3/ 9-5,0
Series: PST

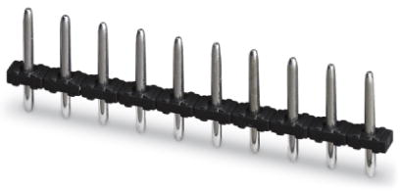

1933257 Phoenix Contact PCB Connection Systems Image 1

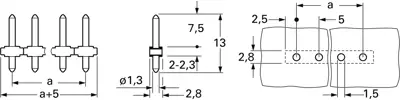

1933257 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 50 pcs.
Available in 10 days: 2,390 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2257 €
50 pcs.
1.1186 €
100 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.

Grid: 5.0 mm. Insulator: PA. Rated surge voltage: 4.0 kV. Inflammability class: UL 94 V-0. Certifications: UL, CUL.

Pin headers, type PST 1,3/..-5,0.

With solder pins 1.3 mm (for bore hole 1.5 mm); Rated voltage (overvoltage category/degree of soiling): 250 V (III/3), 320 V (III/2), 320 V (II/2), rated/load current: max. 12 A.

Technical attributes (type, number of poles, dimension a): PST 1.3/9-5.0, 9-pole, 40 mm

Technical specifications
Colour black
Type of locking No
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 9 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
