1926109 | Phoenix Contact

Pin header, 11 pole, pitch 5.08 mm, angled, green, 1926109

Order No.: 51F7518
EAN: 4017918820152
MPN:
1926109
MSTBA 2,5/11-G-5,08-RN
Series: MSTBA

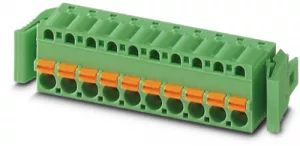

1926109 Phoenix Contact PCB Connection Systems Image 1
1926109 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.4272 € *
Available: 50 pcs.
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1535 €
50 pcs.
2.8679 €
100 pcs.
2.5823 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housings with click-and-lock flange, type MSTBA2,5.

Horizontal conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL

5.08 mm grid, type MSTBA2,5.

Type: MSTBA2,5/11-G-5.08-RN, 11-pole, 50.8 mm

Technical specifications
Filter Property Value
Grid 5.08 mm
contact surface tin-plated
Connection solder connection
Orientation angled
Contact type pin
Version pin header
Rated current 12 A
Colour green
Rated voltage 320 V
Additional parts equipped
Number of rows 1
Type of locking Yes
Pin number 11 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
