1926073 | Phoenix Contact

Pin header, 8 pole, pitch 5.08 mm, angled, green, 1926073

Order No.: 51F7512
EAN: 4017918820121
MPN:
1926073
MSTBA 2,5/8-G-5,08-RN
Series: MSTBA

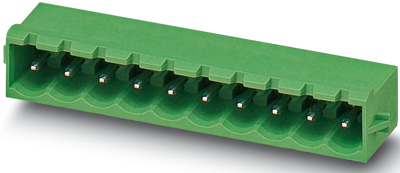

1926073 Phoenix Contact PCB Connection Systems Image 1
1926073 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.4990 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
10 pcs.
2.2967 €
50 pcs.
2.0944 €
100 pcs.
1.8802 €
*incl. VAT plus shipping costs
**Subject to prior sale

Base housings with click-and-lock flange, type MSTBA2,5.

Horizontal conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL

5.08 mm grid, type MSTBA2,5.

Type: MSTBA2,5/8-G-5.08-RN, 8-pole, 35.56 mm

Technical specifications
Version pin header
Colour green
Number of rows 1
Rated current 12 A
Type of locking Yes
Contact type pin
Connection solder connection
Orientation angled
Pin number 8 pole
Rated voltage 320 V
Additional parts equipped
Grid 5.08 mm
contact surface tin-plated
Logistics
Customs tariff number 85366930
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
