1926031 | Phoenix Contact

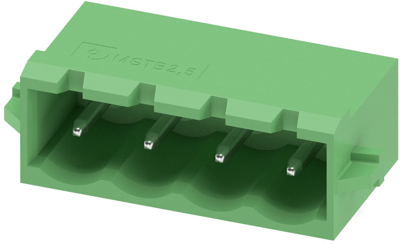

Pin header, 4 pole, pitch 5.08 mm, angled, green, 1926031
Unit Price (€ / pc.)
1.2614 € *
Available: 38 pcs.
Available in 5 Days: 700 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.1662 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Base housings with click-and-lock flange, type MSTBA2,5.
Horizontal conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL
5.08 mm grid, type MSTBA2,5.
Type: MSTBA2,5/4-G-5.08-RN, 4-pole, 15.24 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Colour | green | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Orientation | angled | |
| Rated voltage | 320 V | |
| Connection | solder connection | |
| Pin number | 4 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
