1925786 | Phoenix Contact

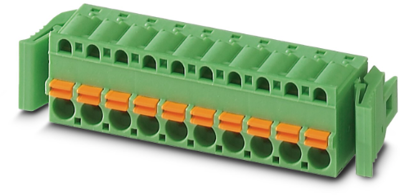

Socket header, 11 pole, pitch 5.08 mm, straight, green, 1925786

Order No.: 51F7448
EAN: 4017918819842
MPN:
1925786
FCK 2,5/11-ST-5,08-RF
Series: FCK
1925786 Phoenix Contact PCB Connection Systems Image 1
1925786 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.8651 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.87 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8651 €
10 pcs.
9.0797 €
50 pcs.
8.2705 €
100 pcs.
7.4375 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FKC2,5.

For conductor cross-sections up to 2.5 mm². Rugged insulated housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 630 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.

5.08 mm grid, type FKC2,5.

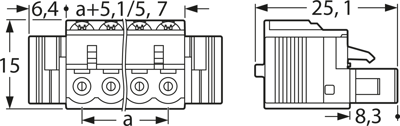

Technical attributes (type, number of poles, dimension a): FKC2,5/11-ST-5.08-RF, 11-pole, 50.8 mm

Technical specifications
Version socket header
Colour green
Number of rows 1
Rated current 12 A
Connection plating tin-plated
Type of locking Yes
Contact type socket
Connection push-in spring connection
Orientation straight
Pin number 11 pole
Rated voltage 320 V
Additional parts equipped
Grid 5.08 mm
contact surface tin-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
