1925731 | Phoenix Contact
Socket header, 6 pole, pitch 5.08 mm, straight, green, 1925731
Unit Price (€ / pc.)
5.6049 € *
Available: 47 pcs.
Available in 10 days: 794 pcs.
Leadtime: 2 Weeks **
Total Price:
5.60 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6049 €
10 pcs.
5.1646 €
50 pcs.
4.7005 €
100 pcs.
4.2364 €
*incl. VAT plus shipping costs
**Subject to prior sale

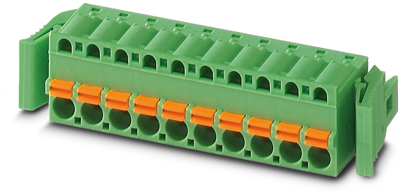

Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FKC2,5.
For conductor cross-sections up to 2.5 mm². Rugged insulated housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 630 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.
5.08 mm grid, type FKC2,5.

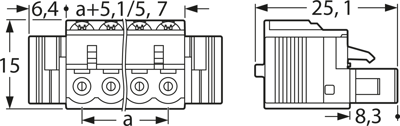

Technical attributes (type, number of poles, dimension a): FKC2,5/6-ST-5.08-RF, 6-pole, 25.4 mm
Technical specifications
| contact surface | tin-plated | |
| Connection | push-in spring connection | |
| Number of rows | 1 | |
| Colour | green | |
| Contact type | socket | |
| Additional parts | equipped | |
| Rated current | 12 A | |
| Rated voltage | 320 V | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Version | socket header | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Grid | 5.08 mm |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
