1883174 | Phoenix Contact

Socket header, 5 pole, pitch 7.5 mm, straight, green, 1883174

Order No.: 64P0475
EAN: 4017918161149
MPN:
1883174
ZEC 1,5/ 5-ST-7,5 C2 R1,5
Series: ZEC

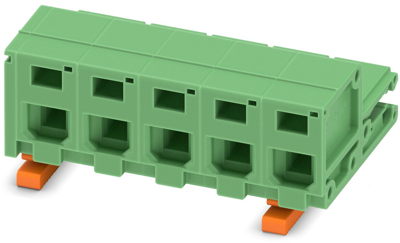

1883174 Phoenix Contact PCB Connection Systems Image 1
1883174 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.6886 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.3197 €
50 pcs.
3.9270 €
100 pcs.
3.5343 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Version socket header
Colour green
Type of locking Yes
Pin number 5 pole
Additional parts equipped
Connection tension clamp connection
Connection plating tin-plated
Rated voltage 630 V
Contact type socket
Rated current 10 A
contact surface tin-plated
Orientation straight
Grid 7.5 mm
Number of rows 1
Logistics
Property Value
Country of origin GR
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
