1883161 | Phoenix Contact

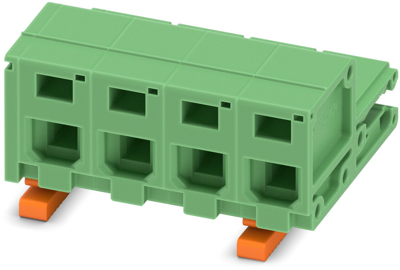

Socket header, 4 pole, pitch 7.5 mm, straight, green, 1883161
Unit Price (€ / pc.)
3.9032 € *
Available in 10 days: 37 pcs. - if ordered today
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.5938 €
50 pcs.
3.2725 €
100 pcs.
2.9274 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 630 V | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Version | socket header | |
| Colour | green | |
| Grid | 7.5 mm | |
| Rated current | 10 A | |
| Type of locking | Yes | |
| Contact type | socket | |
| Number of rows | 1 | |
| Connection | tension clamp connection | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GR |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
